PyTorch Way
Linear Regression 1D: Training Two Parameter Mini-Batch Gradient Descent
Objective
- How to use PyTorch build-in functions to create a model.
Table of Contents
In this lab, you will create a model the PyTroch way, this will help you as models get more complicated
- Make Some Data
- Create the Model and Cost Function the PyTorch way
- Train the Model: Batch Gradient Descent
Estimated Time Needed: 30 min
Preparation
We'll need the following libraries:
# These are the libraries we are going to use in the lab.
import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits import mplot3d
from dataidea_science.plots import plot_error_surfaces
The class plot_error_surfaces
is just to help you visualize the data space and the parameter space during training and has nothing to do with PyTorch.
Make Some Data
Import libraries and set random seed.
# Import libraries and set random seed
import torch
from torch.utils.data import Dataset, DataLoader
torch.manual_seed(1)
<torch._C.Generator at 0x7f5c8438a2b0>
Generate values from -3 to 3 that create a line with a slope of 1 and a bias of -1. This is the line that you need to estimate. Add some noise to the data:
# Create Data Class
class Data(Dataset):
# Constructor
def __init__(self):
self.x = torch.arange(-3, 3, 0.1).view(-1, 1)
self.f = 1 * self.x - 1
self.y = self.f + 0.1 * torch.randn(self.x.size())
self.len = self.x.shape[0]
# Getter
def __getitem__(self,index):
return self.x[index],self.y[index]
# Get Length
def __len__(self):
return self.len
Create a dataset object:

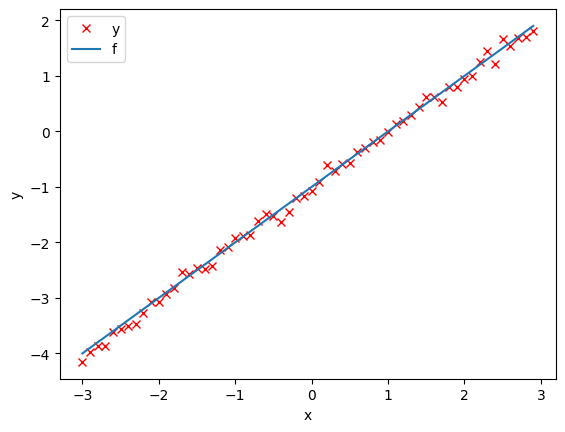

Plot out the data and the line.
# Plot the data
plt.plot(dataset.x.numpy(), dataset.y.numpy(), 'rx', label = 'y')
plt.plot(dataset.x.numpy(), dataset.f.numpy(), label = 'f')
plt.xlabel('x')
plt.ylabel('y')
plt.legend()
<matplotlib.legend.Legend at 0x7f5c615e7d40>
Create the Model and Total Loss Function (Cost)
Create a linear regression class
# Create a linear regression model class
from torch import nn, optim
class linear_regression(nn.Module):
# Constructor
def __init__(self, input_size, output_size):
super(linear_regression, self).__init__()
self.linear = nn.Linear(input_size, output_size)
# Prediction
def forward(self, x):
yhat = self.linear(x)
return yhat
Note about the super()
method: - When LinearRegression
is instantiated, its __init__
method is called. - Inside LinearRegression.__init__
, super(LinearRegression, self).__init__()
calls the __init__
method of the parent class (nn.Module
). - After the parent class is initialized, the rest of the code in the LinearRegression.__init__
method runs too.
This mechanism ensures that the nn.Module
class is properly initialized before any additional initialization specific to LinearRegression
occurs.
The Loss and Optimizer Functions
We will use PyTorch build-in functions to create a criterion function; this calculates the total loss or cost
Create a linear regression object and optimizer object, the optimizer object will use the linear regression object.
# Create optimizer
model = linear_regression(1,1)
optimizer = optim.SGD(model.parameters(), lr = 0.01)
[Parameter containing:
tensor([[0.3636]], requires_grad=True),
Parameter containing:
tensor([0.4957], requires_grad=True)]
Remember to construct an optimizer you have to give it an iterable containing the parameters i.e. provide model.parameters()
as an input to the object constructor
Similar to the model, the optimizer has a state dictionary:
{'state': {},
'param_groups': [{'lr': 0.01,
'momentum': 0,
'dampening': 0,
'weight_decay': 0,
'nesterov': False,
'maximize': False,
'foreach': None,
'differentiable': False,
'fused': None,
'params': [0, 1]}]}
Many of the keys correspond to more advanced optimizers.
Create a Dataloader
object:
PyTorch randomly initialises your model parameters. If we use those parameters, the result will not be very insightful as convergence will be extremely fast. So we will initialise the parameters such that they will take longer to converge, i.e. look cool
# Customize the weight and bias
model.state_dict()['linear.weight'][0] = -15
model.state_dict()['linear.bias'][0] = -10
Create a plotting object, not part of PyTroch, just used to help visualize
# Create plot surface object
get_surface = plot_error_surfaces(15, 13, dataset.x, dataset.y, 30, go = False)
Train the Model via Batch Gradient Descent

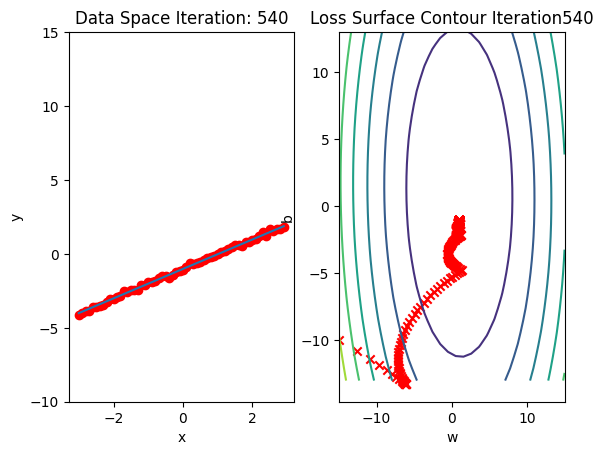

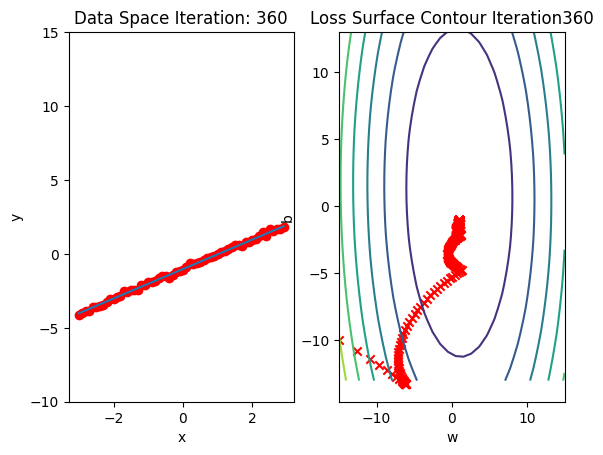

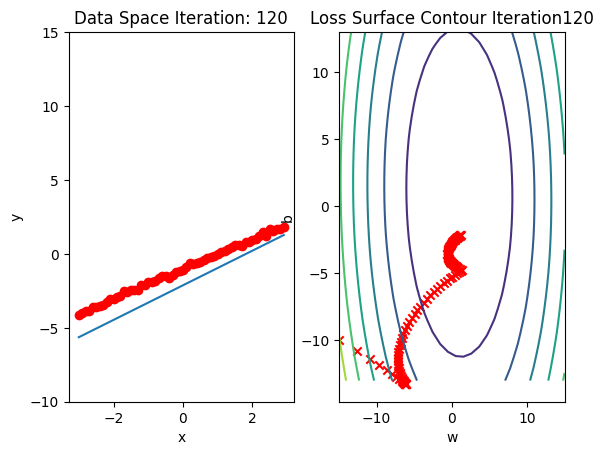

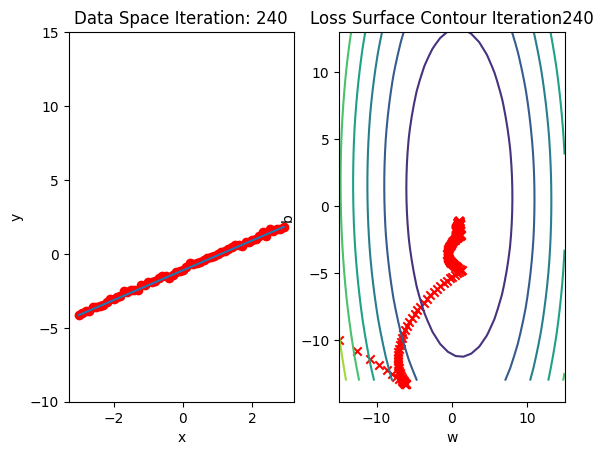

Run 10 epochs of stochastic gradient descent: bug data space is 1 iteration ahead of parameter space.
# Train Model
def train_model_BGD(iter):
for epoch in range(iter):
for x,y in trainloader:
yhat = model(x)
loss = criterion(yhat, y)
get_surface.set_para_loss(model, loss.tolist())
optimizer.zero_grad()
loss.backward()
optimizer.step()
get_surface.plot_ps()
train_model_BGD(10)
OrderedDict([('linear.weight', tensor([[0.9932]])),
('linear.bias', tensor([-1.0174]))])
Let's use the following diagram to help clarify the process. The model takes x
to produce an estimate yhat
, it will then be compared to the actual y
with the loss function.
When we call backward()
on the loss function, it will handle the differentiation. Calling the method step on the optimizer object it will update the parameters as they were inputs when we constructed the optimizer object. The connection is shown in the following figure :
Practice
Try to train the model via BGD with lr = 0.1
. Use optimizer
and the following given variables.
# Practice: Train the model via BGD using optimizer
model = linear_regression(1,1)
model.state_dict()['linear.weight'][0] = -15
model.state_dict()['linear.bias'][0] = -10
get_surface = plot_error_surfaces(15, 13, dataset.x, dataset.y, 30, go = False)
Double-click here for the solution.
